Model: PHANTOM S-280
Dali Speakers

PHANTOM S-280

  • Marka:
  • Kategori:

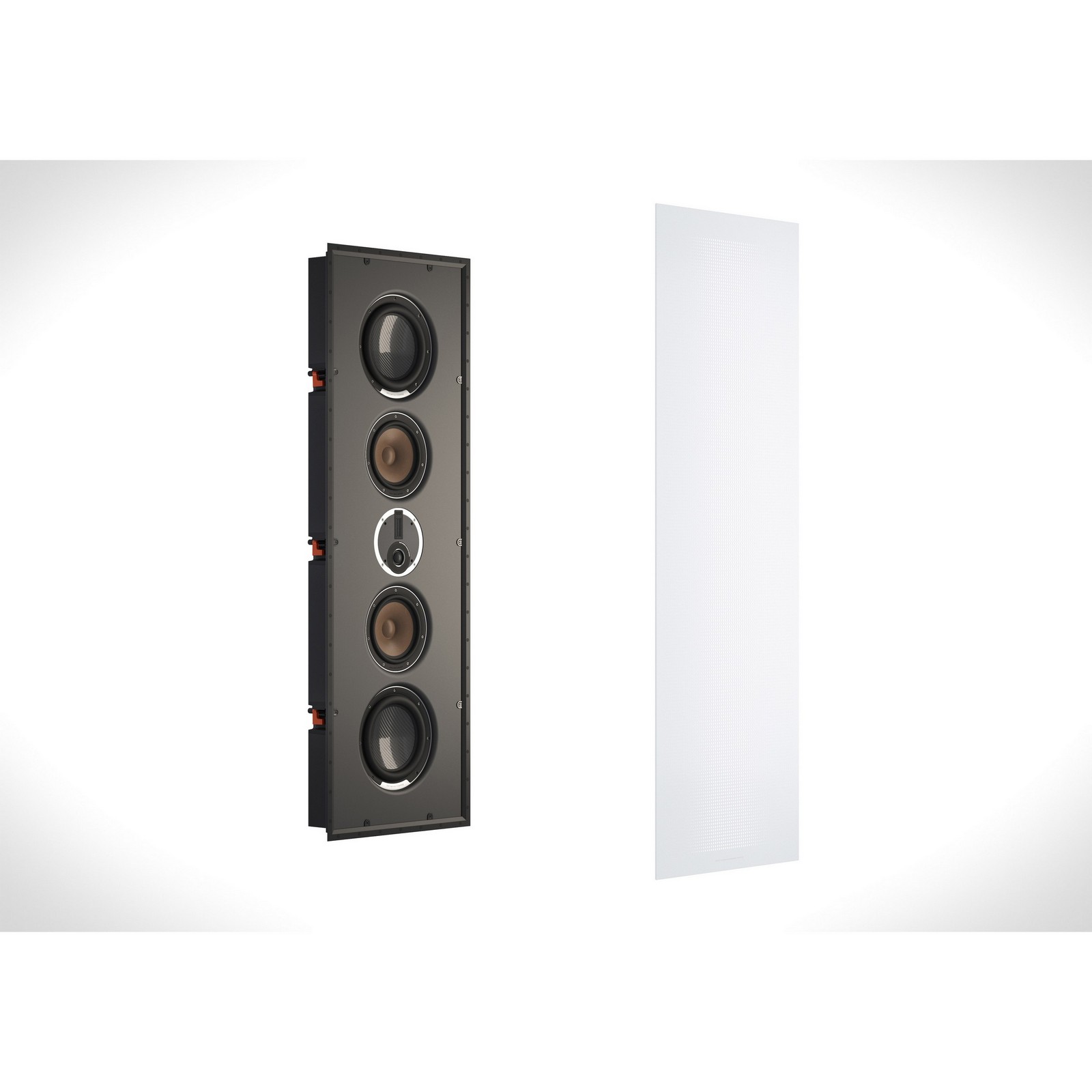

The PHANTOM S-280 is a no compromise in-wall power-house of a loudspeaker with two 8” bass/mid-range drivers, two 10” passive radiators and a rotatable hybrid tweeter module. It delivers clean, coherent, detailed, powerful and room filling sound. And still it features a slim cabinet that fits into almost any standard wall.


PRODUCT FAMILY

QUICK VIEW
PHANTOM H-50 SINGLE
The compact PHANTOM H-50 delivers impressive clarity, and despite its size, it manages to generate a great deal of bass. The PHANTOM H-50 is equipped with a 5.25" woofer and designed for optimum in-wall use, but can also be mounted in the ceiling.
QUICK VIEW
PHANTOM H-60 SINGLE
The PHANTOM H-60 in-wall speaker delivers the perfect balance between size and performance. The PHANTOM H-60 is equipped with a 6.5" woofer and designed for optimum in-wall use, but can also be mounted in the ceiling.
QUICK VIEW
PHANTOM H-80 SINGLE
The PHANTOM H-80 is the speaker you choose, when large, dynamic and well-defined sound really matters. The PHANTOM H-80 is equipped with a 8" woofer and designed for optimum in-wall use, but can also be mounted in the ceiling.
QUICK VIEW
PHANTOM E-60 SINGLE
The DALI PHANTOM E-60 is the perfect all-around speaker. It is not too big and therefore still easy to place, but it is big enough to deliver a full and complete audio experience. The E-60 is equipped with a 6½" woofer and designed for optimum in-ceiling use, but can also be mounted in-wall.
QUICK VIEW
PHANTOM E-80 SINGLE
With the DALI PHANTOM E-80, it’s all about big sound. Drawing on every part of its 8” woofer, it will fill even very large rooms with sound, while keeping the bass under control. The PHANTOM E-80 is equipped with a 8" woofer and designed for optimum in-ceiling use, but can also be mounted in-wall.
QUICK VIEW
PHANTOM S-80
The PHANTOM S-80 is the most compact in-wall speaker in the range. With its 8 inch bass/mid-range woofer working in combination with the rotatable hybrid tweeter module, it delivers a clear and well-defined audio reproduction - including a surprising bass performance.
QUICK VIEW
PHANTOM S-180
The PHANTOM S-180 is a full-size in-wall loudspeaker, which combines a 8” wood fibre driver with a 10” passive carbon fibre radiator and a rotatable hybrid tweeter module to deliver coherent, clean and detailed room filling sound. All this squeezed into a slim cabinet that fits into almost any standard wall.
QUICK VIEW
PHANTOM E-50 SINGLE
The DALI PHANTOM E-50 in-ceiling speaker delivers an incredible clear and well-defined audio experience, and impresses with the level of bass it can produce, despite its size. The E-50 is equipped with a 5.25" woofer and designed for optimum in-ceiling use, but can also be mounted in-wall.
QUICK VIEW
PHANTOM S-280
The PHANTOM S-280 is a no compromise in-wall power-house of a loudspeaker with two 8” bass/mid-range drivers, two 10” passive radiators and a rotatable hybrid tweeter module. It delivers clean, coherent, detailed, powerful and room filling sound. And still it features a slim cabinet that fits into almost any standard wall.
QUICK VIEW
PHANTOM E-60 S
The PHANTOM E-60 S is the first build-in stereo speaker by DALI - featuring two 20 mm tweeters. Its compact size makes it perfect for small to medium-sized rooms or as height speakers in a multi-channel setup. The E-60 S can be tuned according to the room acoustics, resulting in a fantastic integration and a high level of details.
QUICK VIEW
PHANTOM K-60 LP
The DALI PHANTOM K-60 LP (Low Profile) is an ultra-shallow in-ceiling speaker with a mounting depth of only 36.5mm, which will fit in installations where regular in-ceiling speakers will not.
  • DESCRIPTION
  • SPECS
  • IMAGES
  • TAGS
DESCRIPTION
DESCRIPTION

PRODUCT DETAILS

The DALI PHANTOM S-280 offers the ultimate performance when it comes to custom install loudspeakers - without sacrificing valuable living room space. With the use of proven speaker technologies, such as our characteristic wood fibre cones, low-loss rubber surround, solid MDF front baffle, and superior magnet design - combined with our latest innovation including a SMC pole piece and our signature hybrid tweeter module - it delivers a no compromise in-wall audio performance out of this world.

The two primary 8” woofers are optimised for both bass and mid-range performance, and to further enhance the bass performance, we have paired them with two 10” passive woofers. This results in a full frequency response similar to that of a boxed floorstanding speaker, which ensures that the PHANTOM S-280 really stands out from the crowd.

The ultra slim cabinet design fits into almost any standard wall. All models are built around a rotatable hybrid tweeter module making them easy to install for any audio use – be it stereo, centre channel or surround.

See the PHANTOM S whitepaper (below) for a more technical description.



CABINET DESIGN

The PHANTOM S-280 features a slim cabinet that fits into almost any standard wall. Constructing a shallow back cabinet was a challenge in several ways. With a depth of only 103 mm (4 inches), getting the perfect inner volume for the woofers had to be found both in the height and width of the speaker, but also internally.

The front of the PHANTOM S-280 integrates elegantly with the wall via the surrounding extruded aluminium frame. The picture frame design helps to ensure a large termination point between speaker and wall without a visually dominating footprint.

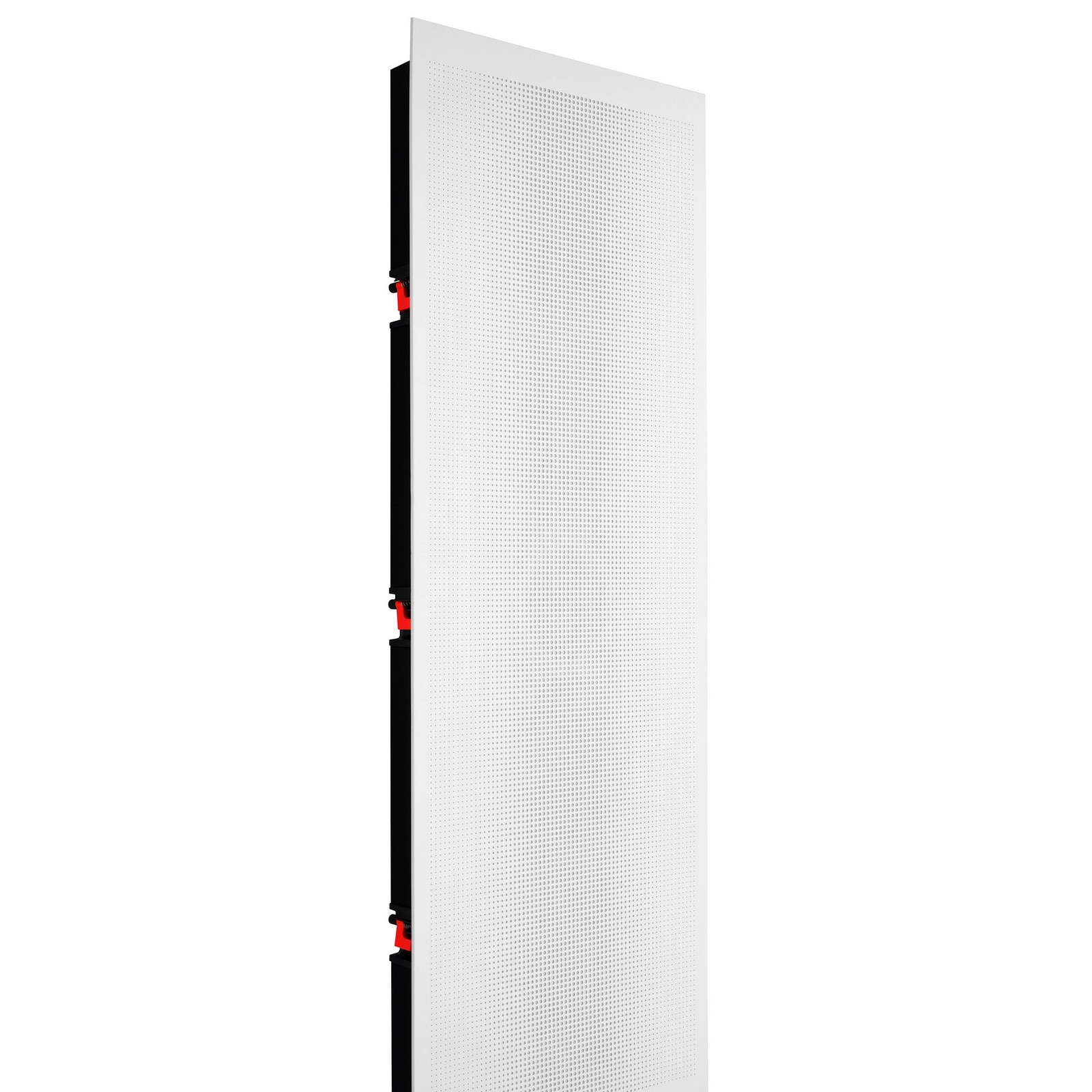

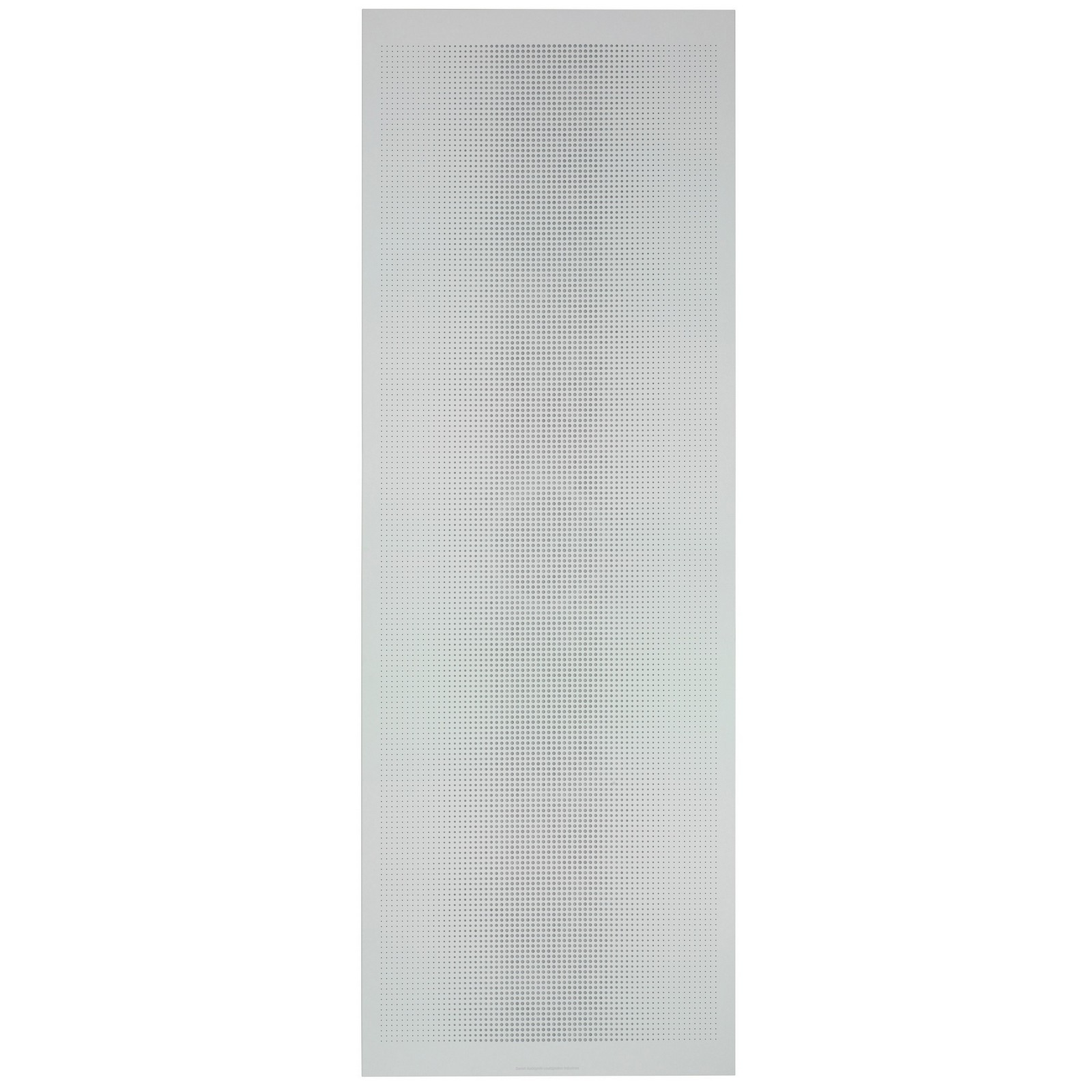

The magnet mounted front grille forms the visual presence of the PHANTOM S-280. The discreet, simple, but modern design is non-intrusive and at the same time pleasing to the eye.

The cabinet is constructed from a solid MDF that holds the easy-to-use dogleg mounting system and the terminals. The rear MDF chamber is entirely wrapped in a high quality black vinyl to complete the look from the painted front baffle. The entire cabinet is designed with a thickness solid enough to avoid resonance.



SMC

Due to its superior precision and minimal distortion, we chose to base the PHANTOM S-280 woofers on the SMC (Soft Magnetic Compound) magnet system originally developed for the EPICON 8.

SMC has the unique ability of delivering very high magnetic conductivity and very low electrical conductivity, thereby dramatically lowering the effects of hysteresis and eddy currents around the pole piece. In plain English: dramatically lowering the level of distortion. While at the same time delivering all the wanted qualities of a good magnet system.

By surrounding the SMC pole piece with aluminium rings and a 1.5” four-layer voice coil, we achieved optimal control, low distortion and high power handling. The low loss surround and the cone structure is optimised for midrange performance, and likewise the dust cap. The smaller than usual dust cap has been arched outward as part of the woofer depth optimisation.

All this combined delivers a high bandwidth reproduction with amazing detailing and the ability to deliver well-controlled bass and midrange reproduction.



TWEETER

The rotatable hybrid tweeter module in the PHANTOM S-280 is the perfect high frequency solution. DALI has a long and well-proven tradition for the use of hybrid tweeter modules, which combines a soft dome tweeter with a ribbon tweeter. This ensures an amazing rendering of the high frequencies, and dispersion of high frequency sounds that outperforms other tweeter technologies.

Both the soft dome and the ribbon tweeter are free of artefacts - e.g. resonances and high Q peaks - within their working range. The hybrid tweeter module features an extremely smooth and wide horizontal dispersion - one of our sound design trademarks. Even the detailing of the faceplate for the tweeter module is designed for optimal horizontal dispersion.

The characteristics of the soft dome tweeter are low resonance frequency, high power handling, extreme excursions, and exceptional headroom for high sound pressure levels.

The magneto-static ribbon tweeter trademark is being a true master in horizontal distribution of high frequencies, and a superb partner for the soft dome tweeter’s unique ability to reproduce frequencies from 2 kHz upwards.



WOOFER

The two primary 8” woofers were designed and developed specially for the PHANTOM S-280 and optimized for both bass and midrange performance. The SMC magnet system developed for the EPICON range was chosen as the core for this woofer for its unique ability of dramatically lowering the level of distortion.

Offering 70% more surface area, the 8” woofers are able to move more air and deliver a higher sound pressure at very low frequencies compared to a traditional 6½” woofer. All this whilst still delivering detailed information, rich midrange sound and a full frequency response as of a traditional floorstanding speaker.

To ensure the best possible bass performance in the PHANTOM S-280, we integrated two 10" passive bass reflex woofers - based on the passive radiator used in our highend subwoofer 'DALI SUB P-10 DSS'.

By also using the same aluminium chassis, soft surround and very well behaving carbon fibre cones, the passive radiators let the PHANTOM S-280 reach deep down into the true lower frequencies to deliver a believable large boxed speaker sound. But in a very slim cabinet.



WIDE DISPERSION

By designing our drivers for wide dispersion, we make our loudspeakers easy to integrate into any room, delivering a smooth and well integrated sound for a wider listening position.

This technology is perfect for the PHANTOM S-280, since it is always mounted flush against a wall.

Working with the off-axis optimisation ensures that the listener will have a large sweet spot where the soundstage is perfect, but also ensures high quality sound away from the central sweet spot.

By optimising the audio signal for off-axis distribution, both the direct signal and the reflected signal will have the same high quality. This means a consistent high quality of sound, across a much wider listening area.

The uniform dispersion over a wide range of listening angles ensure a smooth, uniform energy distribution within the listening room, which is another crucial factor for a coherent and well balanced tonality.
